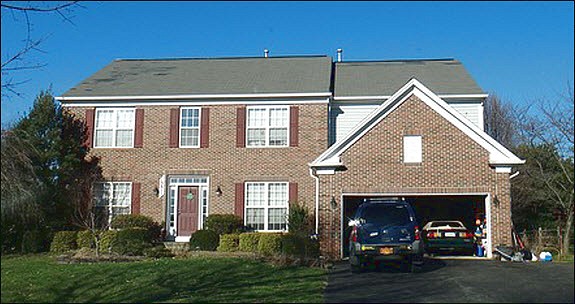

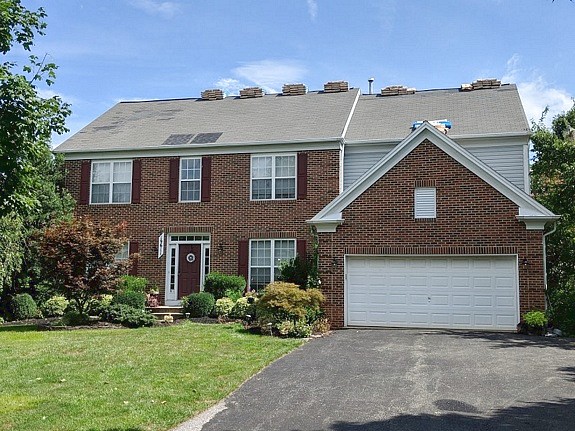

On March 2, 2018 a
storm with winds over 78mph blew through the Hoover Farm Subdivision in Laytonsville, MD damaging
several homes. The Defazio's roof was hit pretty
hard.
|

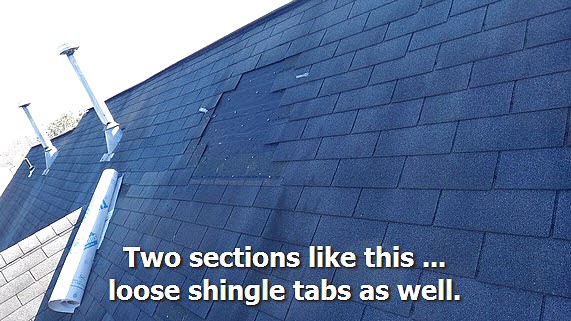

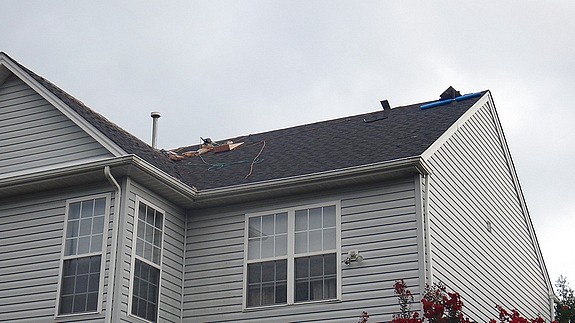

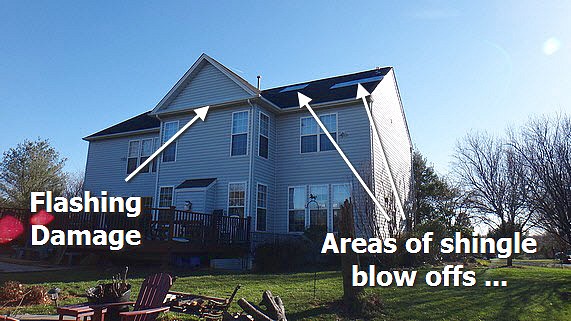

Wind ripped the 25 year
"builder's shingles" from the roof in several places.
|

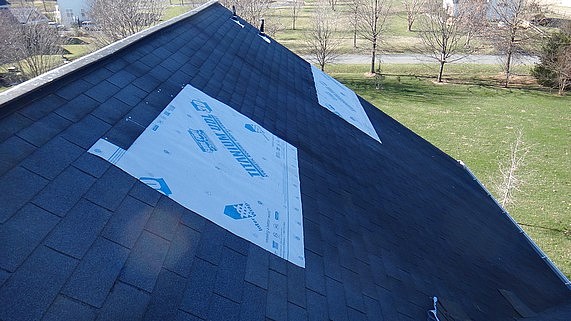

We carefully
waterproofed the home with temporary "tarping," securing the home from further damage, and
the roof replacement process begins ...
|

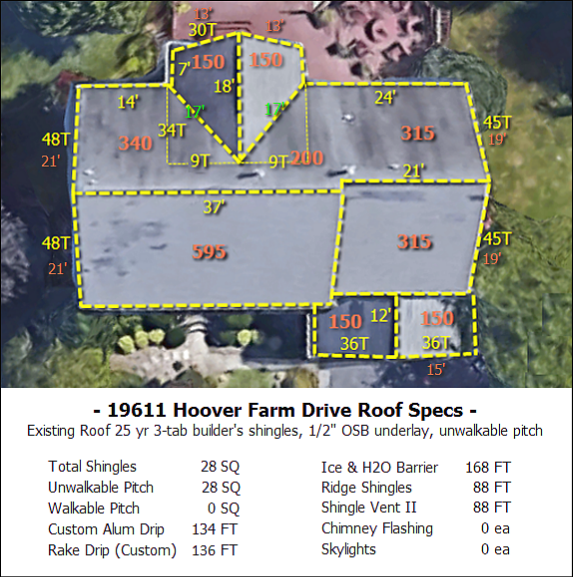

Roofing Diagram.
|

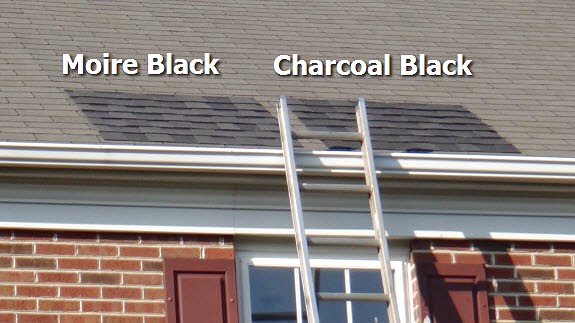

Choosing roof colors: Moire Black (lighter) vs.
Charcoal Black (dark).
|

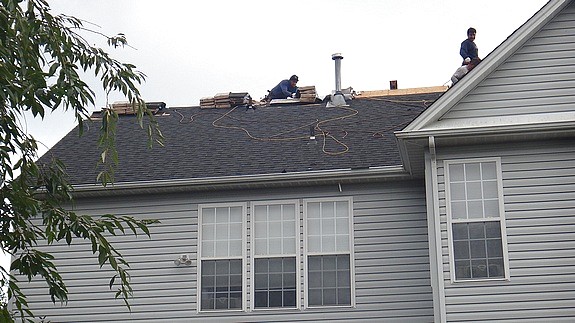

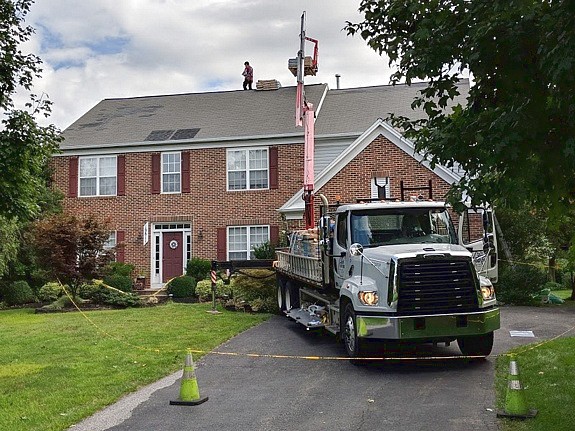

CertainTeed Landmark "Lifetime" Architectural
Shingles are loaded onto the rooftop. Color: Charcoal Black
|
|

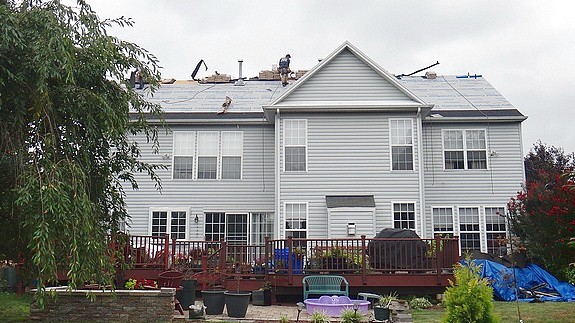

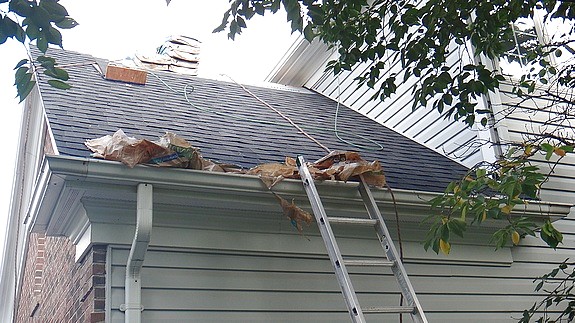

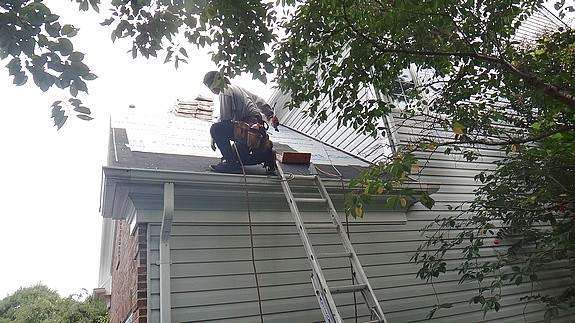

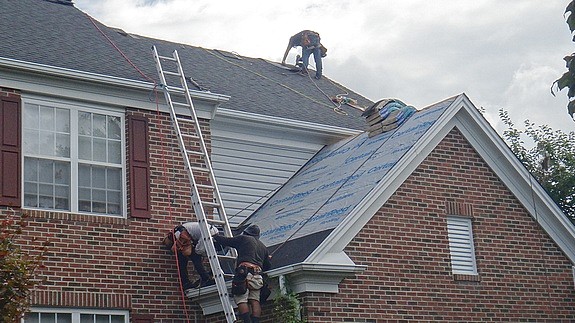

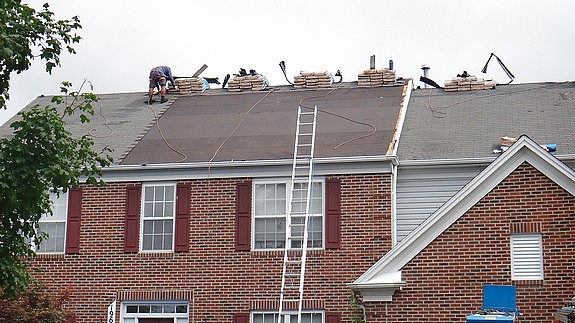

The 25 year "3-tab
builder's shingles are being removed ...
|
|

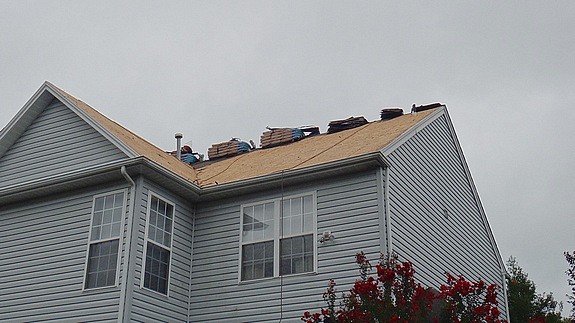

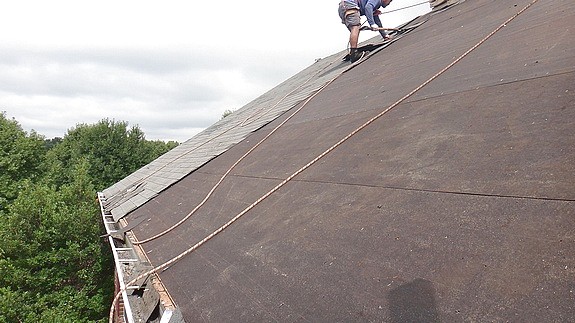

Old roofing and tarpaper are stripped down to the OSB
(oriented strand board) plywood.
|

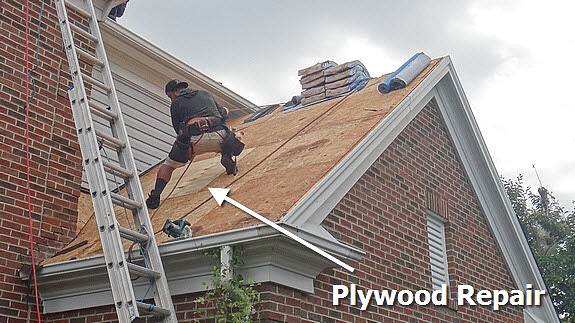

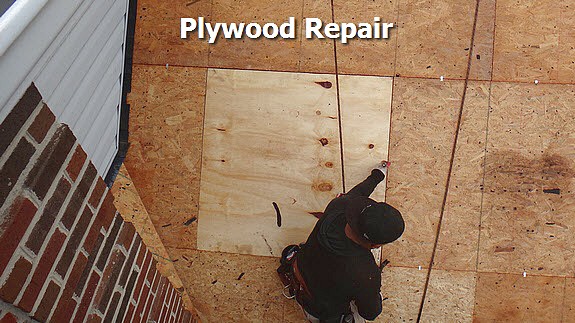

Plywood repairs are
made where necessary ...
|
|
|

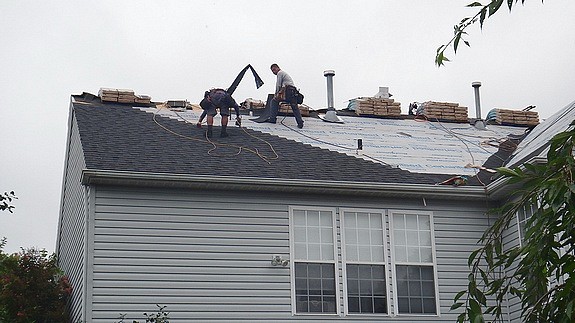

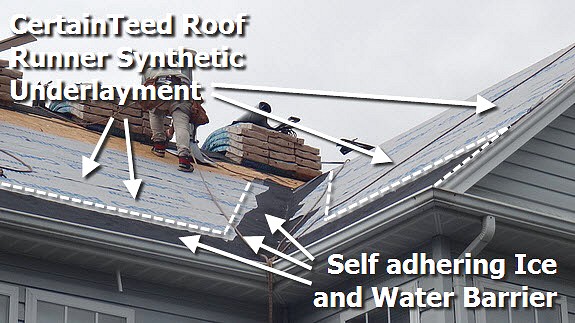

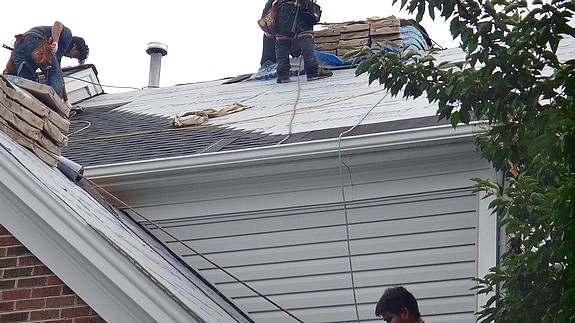

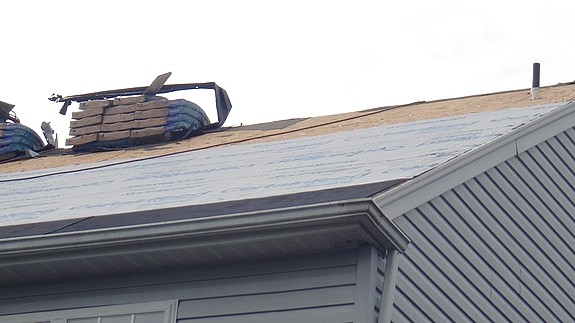

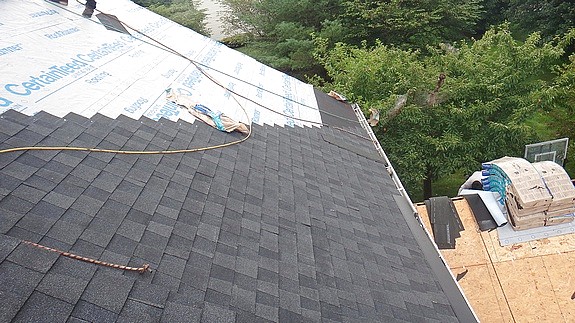

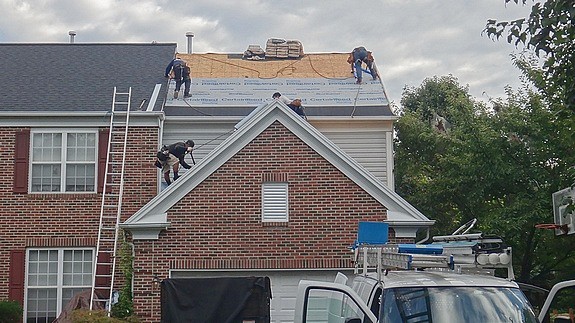

Custom aluminum drip edge, ice & water barrier,
and synthetic underlayment are skillfully applied before the new shingles are nailed.
|
Upgrades from
the existing builder's shingles and organic tarpaper (roofing
felt) included:
- Upgrade to 6" custom drip edge at all
eaves (gutter edges)
- Upgrade to 4" custom drip edge at all
rakes (sloped sides of gables) where none
existed

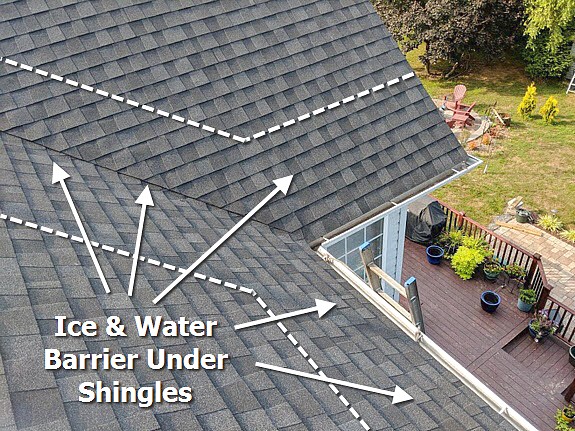

- Upgrade to
"Ice & Water Barrier" at all gutter edges, valleys, and around
penetrations
- Upgrade
from organic 15 lb. tarpaper "felt" underlayment to synthetic
underlay
- Upgrade
from builder's shingles to CertainTeed Landmark Architectural Lifetime
Shingles

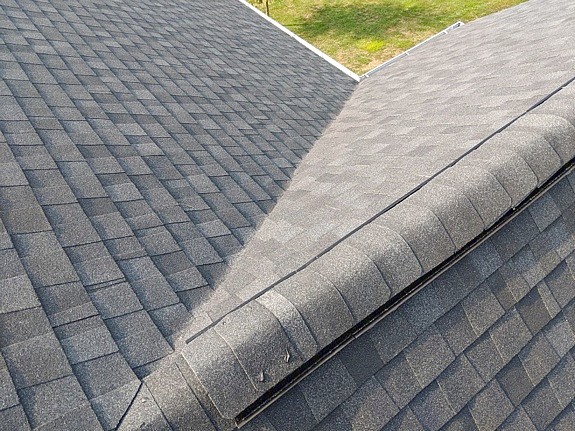

- Upgrade
from builder's grade metal ridge vent to High Performance Shingle Vent II Ridge Vent
System.
Color:
Landmark "Charcoal
Black"
|
|
|
|
|
|
|
|
|
|
|

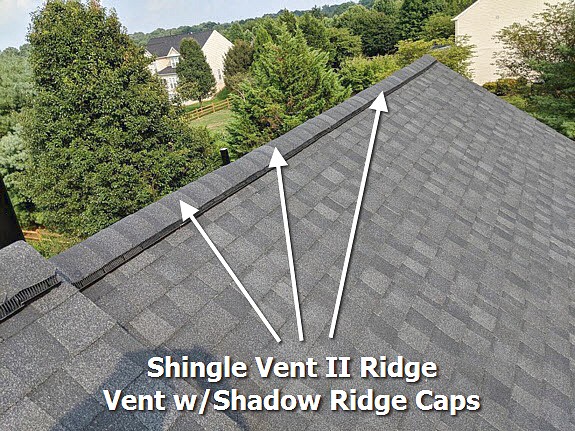

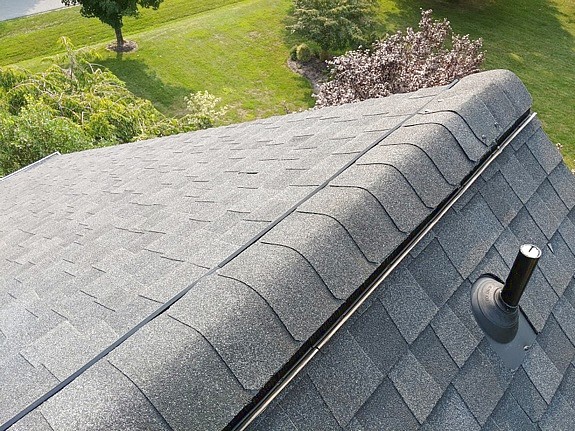

A New Shingle
Vent II System will naturally circulate more air through the attic, and will
also:
- Stabilize the attic air temperature with no extra
energy cost.
- Keep the insulation
drier thus making it more effective.
- Lower heating and
cooling costs.
- Help eliminate
dangerous mold and mildew, helping out your allergies, maybe keeping you
healthier.
- Help prolong the life
of plywood, building materials, and insulation.
|
|

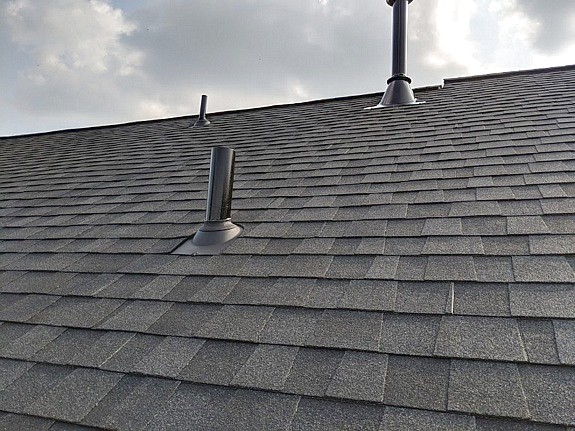

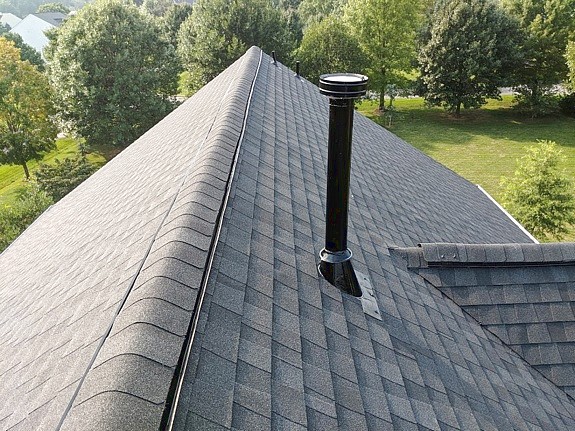

New neoprene/aluminum pipe
collars installed; Rustoleum Brand rust resistant paint applied to all pipes, vents, heater exhaust
...
|
|
|
|

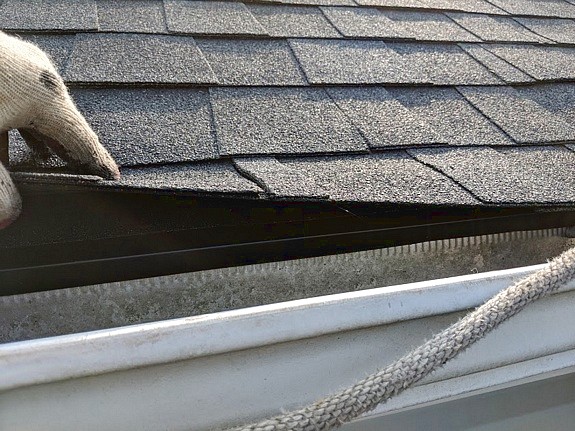

The custom aluminum drip edge helps deposit rain
water directly into the gutter system, protecting against plywood and fascia wood damage. Most roofers don't do anything like this
...
|
|

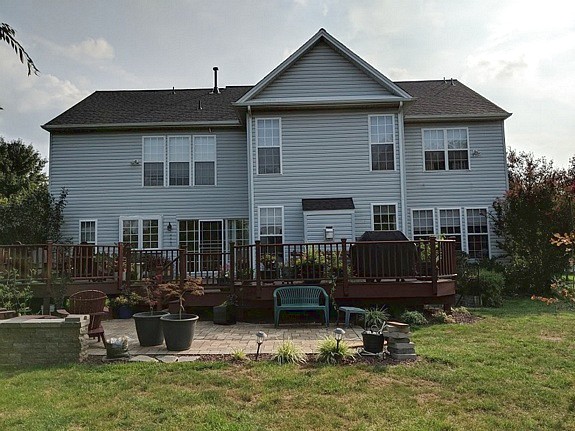

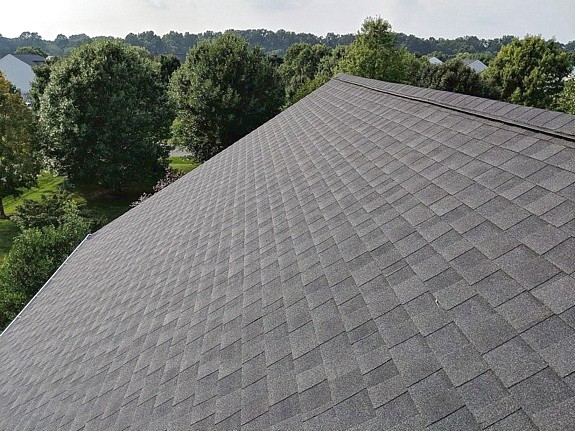

The re-roofing of the main house is a done
deal! Now ...
|

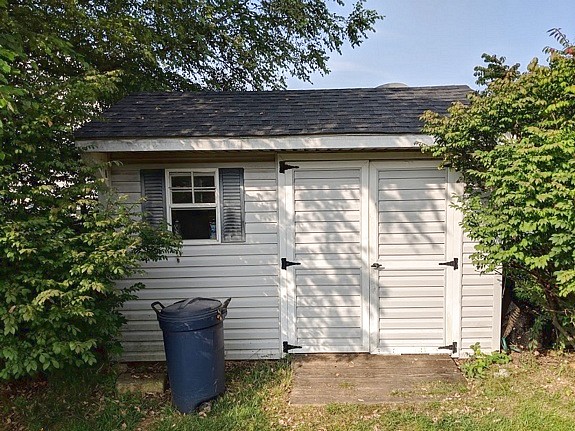

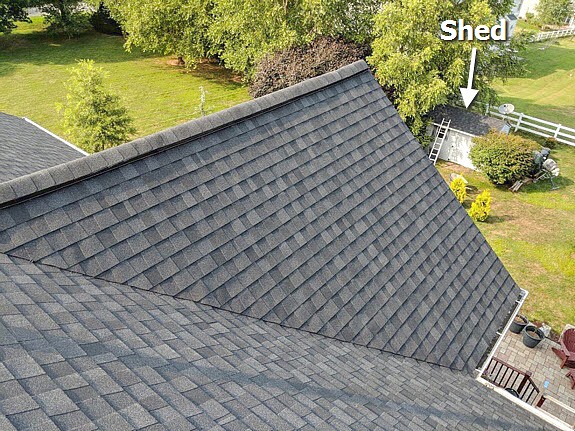

...See the shed way back there? It's
next!
|

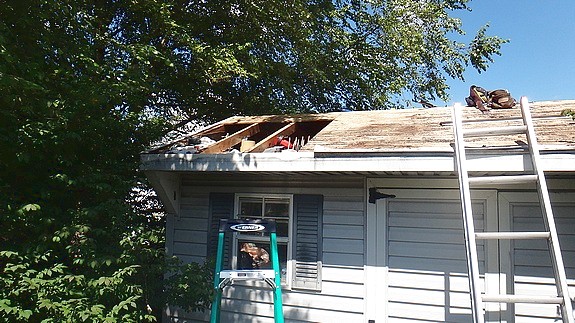

The 25 year organic based shingles are in pretty
rough shape.
|
|

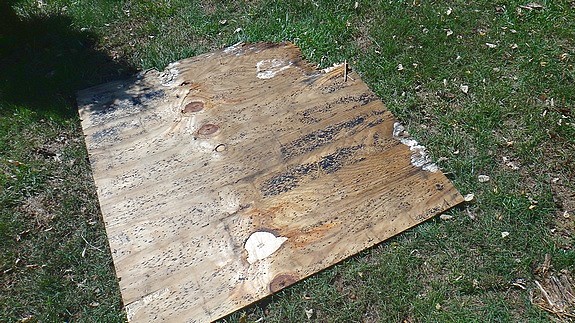

A few sections of 1/2" CDX plywood had rotted
away. No worries, they'll be replaced.
|
|

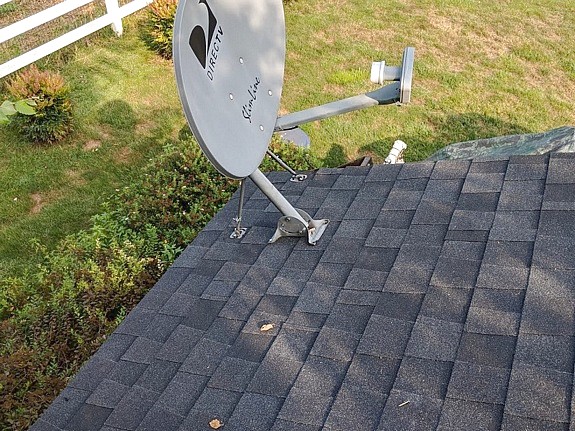

Satellite dish removed and replaced.
|

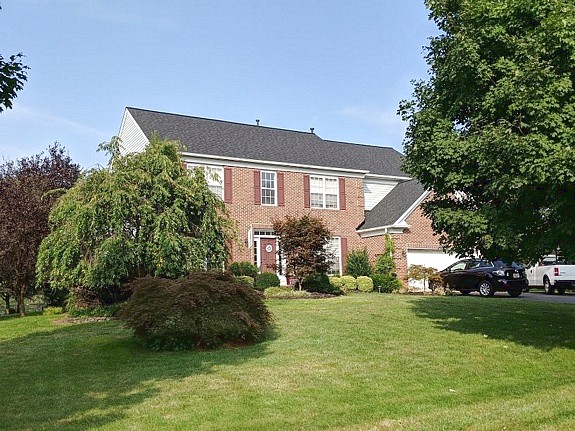

And finally, the entire roofing project has
been professionally completed!
|
|
